Wallboxes | Flexible charging systems

The Pro Flexible charging system is a portable charging station that offers a charging capacity of up to 22kW. In addition, the integrated adapter disconnection point allows flexible adaptation to any charging situation. Whether you are at home, traveling or abroad, the Pro Flexible Charging System offers a safe and adaptable charging solution for your BEV and PHEV.Advantages- Charging capacity of up to 22kW- Adapter separation point for individual adaptation to existing charging options- Fixed Type 2 plug (vehicle side)- Automatic detection and adjustment of the adapter's charging power- Individually adjustable charging power- Safe charging- Improved organization in the boot- Optional wall bracket with built-in lockDescription:Safety features- Integrated type A residual current device (AC 20mA with protective conductor monitoring) and DC residual current detection (RCDDC 6mA)- Built-in temperature sensors in all household adapters- Waterproof (IP67)- Operating temperature range from -40 °C to +50 °CConnectivity:- Measurement accuracy: +/- 1%- Connectivity: WLAN 2.4 GHz IEEE 802.11bg- Over the Air Updates (OTA)- Remote start stop- App name in the store: Mercedes-Benz ChargerCharging options (depending on the set)- Industrial sockets (CEE32/3, CEE32/1, CEE16/3, CEE16/1)- Domestic sockets (type E/F adapter (CEE7/7), type G adapter (UK), T13 adapter (CH))- Public charging stations / Wall

The flexible charging system offers you a mobile charging solution with up to 22kW charging power. The adapter disconnect plug allows you to adapt your system to any charging option, whether at home, on the road or abroad. Enjoy safe and flexible charging for your vehicle. Advantages:- Charging with up to 22kW- Adapter separation point - individual adaptation to the available charging options- Permanently connected Type 2 plug (vehicle side)- Automatic adapter recognition and setting of the charging power- Individually adjustable charging power- Safe charging- More order in the bootDescription:Safety- Integrated type A residual current circuit breaker (AC 30mA with protective conductor monitoring) and DC-residual current detection (RCD DC 6mA)- Integrated temperature sensors in all household adapters- Drive-over-proof control unit (up to 2 tons)- Waterproof (IP67)- Operating temperature from -30 °C to +50 °C- Charging options (depending on set)- Industrial sockets (CEE32/3, CEE32/1, CEE16/3, CEE16/1)- Domestic sockets (adapter type E/F (CEE7/7), adapter type G (UK), adapter T13 (CH))- Public charging stations / wallboxes (adapter type 2)

Our CEE32/1-phase adapter is an indispensable element of the flexible charging system. With a charging capacity of up to 7.4kW (230V) and a current of up to 32A, your charging process is carried out quickly and efficiently. The adapter is automatically recognized by the flexible charging system, so no further settings are necessary. With a size of 47 cm (l) and a weight of 534 grams, the adapter is easy to transport and install.

The Smart Home charging station is a permanently installed charging unit designed for both private and commercial use. It enables electric and plug-in hybrid vehicles to be charged quickly and safely. With a maximum charging capacity of 22 kW, it offers a considerably faster and more convenient charging option than a conventional socket. Access is controlled via a key switch and the wallbox has extensive safety functions to ensure reliable charging of your Mercedes-Benz vehicle. The permanently installed charging cable has a length of around 6 meters. Technical details:- An integrated LED light indicates the status of the wallbox - The IP55 protection class enables outdoor and indoor use - The charging power is adjustable (10 to 32A, at 230V single-phase up to 7,2kW and three-phase up to 22kW) - A DC residual current sensor and a type A residual current circuit breaker are integrated - Overheating is prevented by a temperature management system - There is a storage compartment for the permanently installed charging cable on the housing and a holder for the charging plug- Thanks to the standardization of the wallbox's charging plug, all current and future models of electric and plug-in hybrid vehicles from Daimler AG as well as electrified vehicles from other manufacturers can be charged.

The Pro Flexible charger is a portable charging unit that enables charging with up to 22kW. The adapter separation point also allows flexible adaptation to any charging situation. Whether at home, when traveling or abroad, the Pro Flexible charger ensures safe and adaptable charging for your BEV and PHEV.Advantages- Charging with up to 22kW- Adapter disconnection point - individual adaptation to the available charging options- Permanently installed Type2-plug (on the vehicle)- Automatic detection and adjustment of the charging power by the adapter- Individually adjustable charging power- Safe charging- More order in the boot- Optional wall bracket with built-in lockDescription:Safety- Built-in type A residual current device (AC 20mA with protective conductor monitoring) and DC residual current detection (RCDDC 6mA)- Built-in temperature sensors in all household adapters- Waterproof (IP67)- Operating temperature from -40 °C to +50 °CConnectivity:- Measurement accuracy: +/- 1%- Connectivity: WLAN 2.4 GHz IEEE 802.11bg- Over the Air Updates (OTA)- Remote start stop- App name in the store: Mercedes-Benz Charger- Charging options (depending on the set)- Industrial sockets (CEE32/3, CEE32/1, CEE16/3, CEE16/1)- Household sockets (adapter type E/F (CEE7/7), adapter type G (UK), adapter T13 (CH))- Public charging stations / Wall

This charging cable is ideal for wallboxes and type 2 public charging stations. It is designed for a current of 20 amps and an output of 4.6 kW. Thanks to its 8 meter long smooth cable, it is a simple and reliable way to charge your electric vehicle. It also supports mode 3 and is 1-phase.

Product specificationsWith the Mercedes-Benz Wallbox, you can charge your electrified Mercedes-Benz in style and effortlessly at home. It offers a charging capacity of up to 11.5 kW*, a 7-meter cable and a Type 1 plug, which makes charging your vehicle safer and significantly faster than at the household socket.Prepared for remote online services in the Mercedes me app**With the Mercedes me app, charging processes can be easily controlled via smartphone. It provides information on the charging status and a clear overview of your charging history. The wallbox is simply connected to the Internet via the customer's own WLAN or LAN.Safety comes firstThe built-in components (20mA CCID) offer additional protection for the vehicle, the house installation and the wallbox during the charging process. In addition, the Mercedes-Benz Wallbox can be activated or blocked via the app or RFID card to protect against unauthorized use.Over-the-air updatesThe Mercedes-Benz Wallbox can perform "over-the-air" software updates via the customer's own WLAN or LAN.Installation***If you are interested in a professional wallbox installation, please contact our installation partner in the respective country. The installation costs are not included in the purchase price, but you will receive a cost estimate for the installation from our installation partner, who will also be happy to check on site whether a wallbox can be installed in your home. An internet connection via LAN or WLAN is required for installation.CompatibilityThe Mercedes-Benz Wallbox has been tested for compatibility and function with all current Mercedes-Benz models. It was developed in accordance with the official IEC 61851-1 standard and can therefore also be used with other vehicles that comply with this standard.Scope of deliveryMercedes-Benz Wallbox, operating instructions

The type G (UK) adapter for the Flexible Charging System Pro enables charging at household sockets in countries such as England, Scotland, Wales, Ireland and Cyprus with an output of up to 1.8 kW (230 V). A built-in temperature sensor in the adapter protects against overheating. Automatic detection by the Flexible Charging System Pro eliminates the need for additional settings.- Enables charging at household sockets in England, Scotland, Wales, Ireland and Cyprus- With built-in temperature sensor- Charging capacity: up to 1.8kW- Charging intensity: up to 8A- 230V / single-phase- Suitable for the Flexible Charging System Pro

The Flexible Charging System is a mobile charger that allows you to charge your vehicle safely and flexibly. With a charging capacity of up to 22 kW and an adapter socket that can be individually adapted to any charging option, you can charge safely anywhere. Whether at home, on the road or abroad. Advantages- Charging with up to 22kW- Adapter separation point - individual adaptation to the available charging options- Permanently connected type 2 plug (on the vehicle side)- Automatic adapterdetection and adjustment of the charging power- Individually adjustable charging power- Safe charging- More order in the bootSafety- Integrated type A residual current circuit breaker (AC 30mA with protective conductor monitoring) and DC-residual current detection (RCD DC 6mA)- Integrated temperature sensors in all household adapters- Drive-over-proof control unit (up to 2 tons)- Waterproof (IP67)- Operating temperature from -30 °C to +50 °C- Charging options (depending on set)- Industrial sockets (CEE32/3, CEE32/1, CEE16/3, CEE16/1)- Household sockets (adapter type E/F (CEE7/7), adapter type G (UK), adapter T13 (CH))- Public charging stations / wallboxes

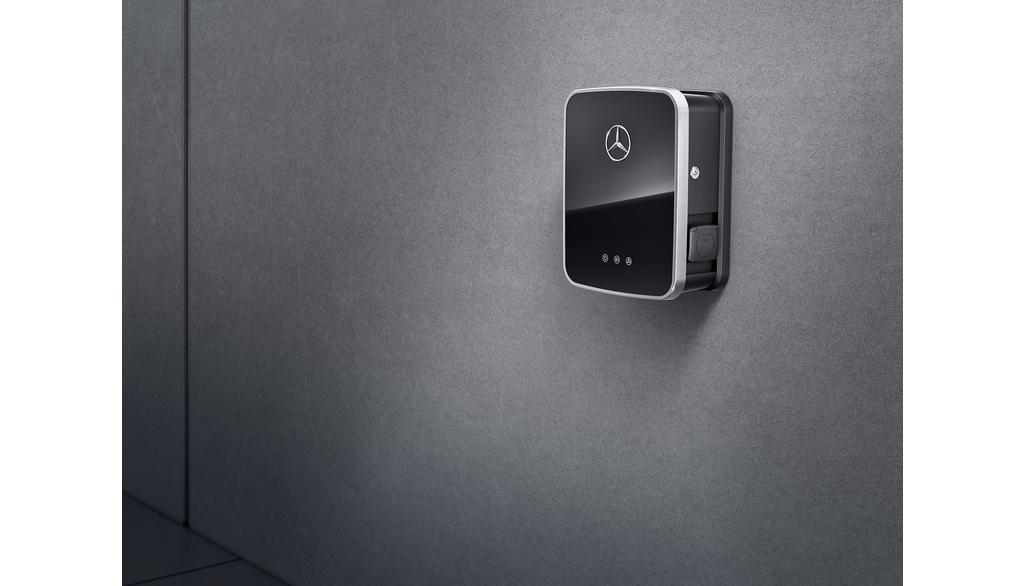

The Mercedes-Benz Wallbox is an ideal solution for fast, safe and convenient charging of battery electric and plug-in hybrid vehicles - whether at home or at work. With a charging capacity of up to 22 kW, it allows you to charge your vehicle quickly and conveniently, much faster than at a household socket. The wallbox is equipped with comprehensive safety features that guarantee a reliable charging process for your Mercedes-Benz car. An optional Mode3 charging cable is also required for operation. An integrated locking mechanism ensures that the charging cable cannot be disconnected during the charging process and that electricity only flows when the vehicle is correctly connected to the wallbox. The wallbox is approved for indoor and outdoor use and can be adapted to the capacity of the existing power connection. Intuitive LED lights indicate the status of the wallbox via icons and access authorization can be controlled via a key switch.

The flexible charging system is a mobile charging solution that allows you to charge quickly and safely with up to 22kW. With the adapter disconnection point, you can adapt to any charging option, whether at home, on the road or abroad. With the flexible charging system, you can charge your vehicle safely and flexibly. Advantages:- Charging with up to 22kW- Adapter disconnection point - individual adaptation to the available charging options- Permanently connected Type 2 plug (vehicle side)- Automatic adapter recognition and setting of the charging power- Individually adjustable charging power- Safe charging- More order in the bootSafety:- Integrated type A residual current circuit breaker (AC 30mA with protective conductor monitoring) and DC residual current detection (RCD DC 6mA)- Integrated temperature sensors in all household adapters- Drive-over safe control unit (up to 2 tons)- Waterproof (IP67)- Operating temperature from -30 °C to +50 °CCharging options (depending on set):- Industrial sockets (CEE32/3, CEE32/1, CEE16/3, CEE16/1)- Domestic sockets (adapter type E/F (CEE7/7), adapter type G (UK), adapter T13 (CH))- Public charging stations / wallboxes (adapter type 2)

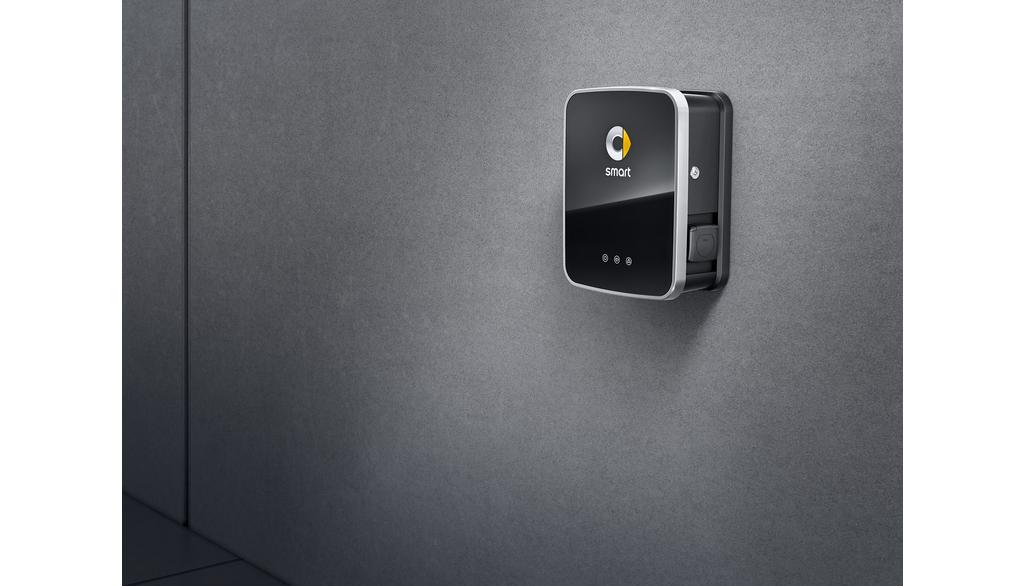

The intelligent wallbox is a charging facility that can be used either privately or commercially and offers fast, safe and convenient charging for battery-powered and plug-in hybrid vehicles. With a maximum charging capacity of up to 22 kW, your vehicle can be charged much faster and more conveniently than with a conventional household socket. Thanks to the extensive safety functions of the wallbox, a reliable charging process is guaranteed. Please note that an optional Mode3 charging cable is required to charge your vehicle.

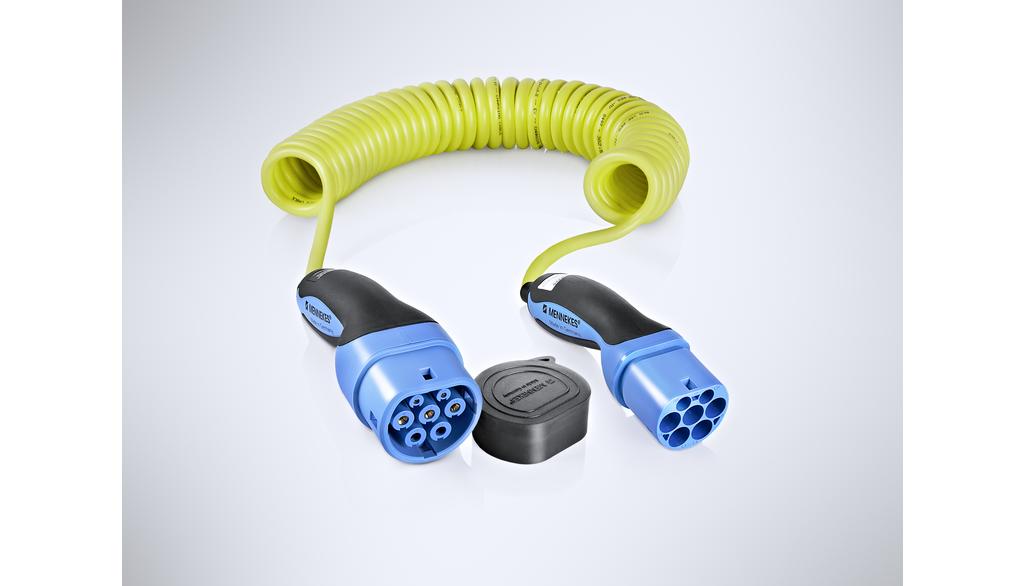

Our type 2 charging cable is a versatile product that is suitable for both wallboxes and public charging stations. It is a Mode 3 cable that is single-phase and offers an output of up to 4.6 kW and a maximum current of 20 A. The 4 meter long cable is coiled to ensure better handling and a longer service life. With this charging cable, you can charge your electric vehicle quickly and easily.

The Mercedes-Benz Wallbox Home is a versatile charging station for private and business use at home or at work. With a charging capacity of up to 22 kW, battery electric and plug-in hybrid vehicles can be charged quickly and safely - far more conveniently than via a household socket. Access is authorized via an integrated key switch. The wallbox is also equipped with numerous safety features to ensure a reliable charging process. An LED light indicates the status of the wallbox, while a DC residual current sensor and an RCCB type A residual current circuit breaker provide additional protection. Thanks to the permanently installed charging cable with a length of approx. 6 m. and the standardization of the charging plug, all current and future electric vehicles and plug-in hybrid vehicles from Daimler AG as well as electrified vehicles from other manufacturers can be charged. The Wallbox Home is IP55-certified and can be used both indoors and outdoors. It also has a storage facility for the charging cable and a holder for the charging plug.

Our type 2 charging cable (mode 3, 3-phase) is ideal for wallboxes and public charging stations. With an output of 32 A and a power of 22 kW, it offers a fast and efficient charging experience. It is 4m long and has a sleek design that simplifies installation and use.

This high-quality type 2 charging cable enables fast and efficient charging from wallboxes and public charging stations. With its 3-phase configuration, 32 A and an output of 22 kW, it is the perfect solution for fast charging. Its 8 meter smooth cable offers easy handling and uncomplicated handling. Thanks to its robust design, it is the perfect tool for anyone who wants quick and easy charging.
